Gearbox intelligent oil changer transmission system maintenance

Gearbox intelligent oil changer transmission system maintenance
Gearbox intelligent oil changer transmission system maintenance
Gearbox intelligent oil changer transmission system maintenanceGearbox intelligent oil changer transmission system maintenanceGearbox intelligent oil changer transmission system maintenanceGearbox intelligent oil changer transmission system maintenanceGearbox intelligent oil changer transmission system maintenance
CategoriesTransmission Flush Machine
AlbumView larger image
Ambient temperature-10~+40℃
VoltageDC 12V
Relative humidity85%
CertificationCE, RoHS
Filter accuracy5 µm
Fluid tank capacity20L*2
Working noise<70db
Unit PriceUS $ 950-1250 / piece
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2020-02-27
Detail Information

High-precision weighing sensor metering, full intelligent computer board accurately controls the same amount of oil change, the internal modular design,the failure rate is extremely low, can automatically complete the gearbox cleaning in a short time, oil change, is the gearbox depth maintenance effective equipment.


1. Fully automatic cycle cleaning

2. Fully automatic equal exchange

3. Quantitatively add new oil

4. Quantitative recovery of used oil

5. Automatically empty new oil drums

6. Electronic scale one-button calibration

7. Manually empty old oil drums



The automatic gearbox cleaning equal oil changer uses two gravity sensors to weigh the weight of new and old oils, and then calculates the flow rate of the old oil, and then according to the flow rate of the old oil is adjusted by the computer chip to adjust the speed of the oil pump with the new oil, and the flow rate equal to that of the old oil is obtained. The replacement process continuously adjusts the speed of the new oil pump, the new oil is added to the transmission, and the operator setting is reached when the replacement is made. When the amount of oil is changed, the equipment replacement is completed, the new oil pump is stopped, and the automatic transmission oil path is automatically switched into the self-circulating condition.

Circulate replacement gearbox oil

Tradition gravity method for oil change


20 minutes

About 2 to 4 hours

The difference

The oil change rate is 99%, which can be cleaned without cleaning and thoroughly cleaned. Easy to operate.

Incomplete oil change, incomplete cleaning and possible damage to the gearbox during manual operate


One-time solution for cleaning and oil change

Oil, labor, cleaning fees

If you have any questions, please  CONTACT US

Products compared to peer advantage

1. Automatic identification of positive and negative power supply

2. Automatic identification of import and export oil

3. LCD display, user-friendly operation, convenient and practical

4. Electronic scale one-key calibration

5. Clean and change oil in short time

6. Filter design at the oil inlet

7. Automatic oil change function, can achieve a key automatic oil change.

8. Full intelligent computer board, imported electronic components, performance and stability.

9. Special customized quick connector, the first in the industry, long service life of high end quality.

Voltage: DC 12V

Pressure gauges:0-1.6Mpa

Oil drum: 20L*2

Maximum power:150W


Foam tube:2.5m

Return pipe: 2.5m

Gross weight:38kg


Net weight:30kg

The viscosity of the transmission oil will become thinner, the smoothing function will be reduced. the sealing function will be reduced, the resistance

 will be added and the wear will be added, resulting in unstable pressure, affecting the working accuracy of the hydraulic system, reducing the control

accuracy of the transmission, reducing the shift accuracy, and smoothing. The response speed will be affected. Maintenance costs are expensive.

If you have any questions, please  CONTACT US

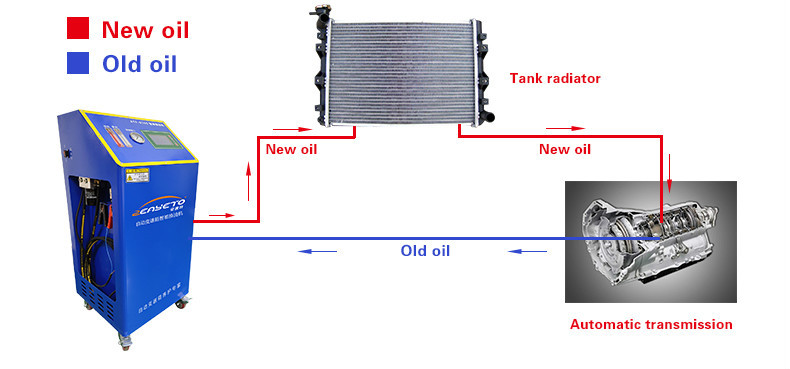

Working Principle

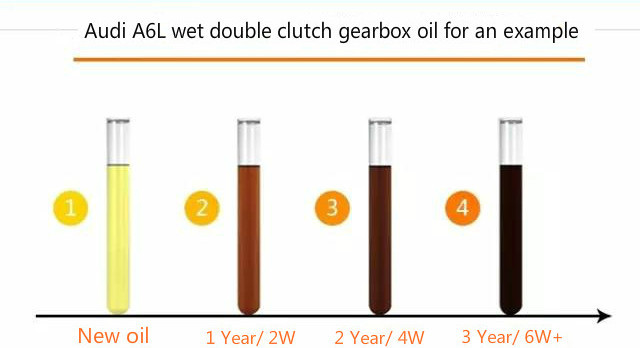

Are the transmission oil of your car healthy?

Note: The deeper the color, the more obvious the degree of oxidation and metamorphism, and the more impurities in the mud.

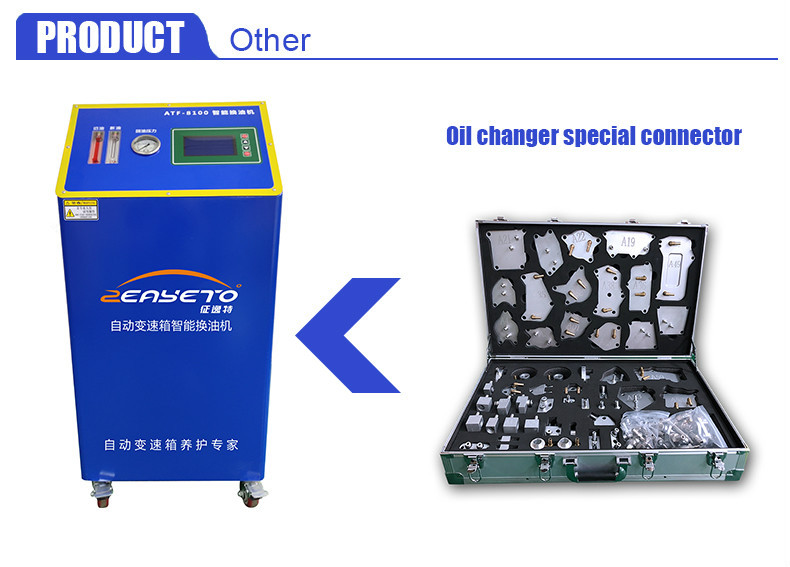

A special connector for most cars in the market, it is recommended to purchase and use the machine.(price is 500USD)

 If you have any questions, please  CONTACT US


Huge space, washed how many times to return to the original, stable earned without loss

You can figure out how much you can earn each day based on your market.

Why choose us

1. Good quality, preferential price

We adhere to the principle of quality first and provide customers with quality products.

2. Ten years of technology precipitation, trustworthy

We focus on the development and production of automatic transmission oil changers, which have been continuously created and continuously improved over the past decade.

3. Quality service

Profession pr-sales and after-sales service team, customer-centric, to provide you with peace of mind, heartfelt service

If you still have questions, please click: Please Enter

Black paper box for inner packing and carton for outside packing.

Security guarantees, and the goods will be sent out, we will inform you as soon as possible. Let you know about logistics information at all times.Your order will be shipped on time according to the details of your contract with the supplier. In the event of a delay, you will be eligible for a refund.

Trade Assurance will cover all payments made during the ordering process up to 30 days after you receive the goods.your order will be protected up to 30 days after you receive the goods.

Remote Technical Support

Life time technical support for customers, Onside service is optional. Save time and increase productivity by combining technical support with remote communication.

Operation Manual & Video Service

According the requirement of our customers, we will provide you a user manual or video for convenience.

Trade Assurance will cover all payments made during the ordering process up to 30 days after you receive the goods.your order will be protected up to 30 days after you receive the goods.

We are always believe:there are no one hundred percent good product, but there is a 100% good service business purpose; while the company is developing, it is committed to customers provide high quality, competitive products and quality services, professional technical consulting training, timely solution and full the questions and requirements raised by the client.

Shenzhen Zeayeto Automotive Technology Co., Ltd is a professional technology company dedicated to the independent research, development, production and sales of professional maintenance equipment for automobiles.The company has a professional research and development and production technology team, and established a sound sales network in the country, for the brand partners to provide quality car maintenance equipment and professional services.Our products include: transmission cleaning equipment, brake cleaning equipment, lubrication system cleaning equipment, cooling system cleaning equipment, nozzle cleaning equipment, cold media cleaning equipment and nitrogen system cleaning equipment, air conditioning cleaning equipment.We obtain the market by the quality, obtains the customer trust by the service!Our mission: to provide quality maintenance equipment for your car.

1. What are the characteristics of the product?

Automatic identification of positive and negative power supply and direction of oil inlet and outlet

Fuel filler with filter design

Special custom quick female head for long service life

Fully intelligent computer board, LCD display

One-button calibration and automatic oil change

2. What are the main functions?

Fully automatic cycle cleaning

Fully automatic equal exchange

Quantitatively add new oil

Automatically empty new oil drums


3. Precautions during use.

Do not use the wrong oil;

Check if the oil level is normal after changing the oil;

Avoid risks, check the car before changing oil;

After the oil change, you must conduct a road test to deliver the car and avoid all mistakes.

4. Does the change tank connector match the model?

Custom female, can match 90% models

5. What is the difference between automatic oil changer and manual oil change?

The manual oil change does not discharge the sludge and impurities of the original gearbox, and the oil change effect is not obtained. The oil changer is changed in the circulating system, and all the impurities of the oil changer can be discharged.

6. Why do I need to change the oil?

High temperature oxidation, the oil in the gearbox does not meet the oil standard

Sludge impurities generated during use will shorten gearbox life

All oils have a shelf life

7. What are the benefits of oil change cleaning?

Fast speed increase, stable idle speed, smooth start, and reduced fuel consumption

8. How long does it take to change the oil process?

The whole process is about 20-30 minutes
